TECHNICAL

TECHNICAL SPECIFICATION

Length:
Thickness:
Custom Lenght:

Thickness:
Weight:
Color:
Fire rating:
Combustible:
Conductivity:
Sound dB:
Water Absorption:
Asbestos:

2200mm - 3600mm
100mm | 170mm
2800mm x 600mm
2900mm x 600mm
120mm | 150mm | 200mm
70 kg | sq.m | 100mm
off white
up to 4 hours
none
0.1739W/m°K
up to 51 db
less than 15%
none

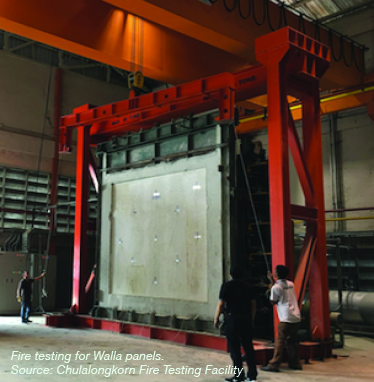

tech01

WALLA TESTING STANDARDS

ITEM 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

TESTING STANDARD BS 476 PART 22:1987 ASTM E4 13-04 BS EN 772-1: 2000 CT-21752/THC CT-21752/THC BS 5234: PART 2: 1992 BS 5234: PART 2: 1992 BS 5234: PART 2: 1992 BS 5234: PART 2: 1992 BS 5234: PART 2: 1992 BS 5234: PART 2: 1992 BS 5234: PART 2: 1992 BS 5234: PART 2: 1992 BS 5234: PART 2: 1992 BS 5234: PART 2: 1992 BS 5234: PART 2: 1992

TESTING ITEM    FIREPROOF    SOUND INSULATION    COMPRESSIVE STRENGTH    THERMAL CONDUCTIVITY    THERMAL RESISTANCE    STIFFNESS    SURFACE DAMAGE BY SMALL HARD BODY IMPACT    SURFACE DAMAGE BY SMALL SOFT BODY IMPACT    PERFORATION DAMAGE BY SMALL HARD BODY IMPACT    RESISTANCE TO STRUCTURAL DAMAGE BY LARGE SOFT BODY    DOOR SLAMMING    CROWD PRESSURE    LIGHT WEIGHT ANCHORAGE PULL OUT    LIGHT WEIGHT ANCHORAGE PULL DOWN    HEAVY WEIGHT ANCHORAGE WASH BASIN    HEAVY WEIGHT ANCHORAGE WASH CUPBOARD

RESULT 240 MIN 52 dB 5.56 Mpa 0.1739 W/m°K 0.5712 m²°K/W PASSED TESTED PASSED PASSED PASSED PASSED 3 Kn/m² 100 N 250 N 1500 N 4000 N
